[CDC] kafka Connect, Debezium, JDBC Sink Connector

728x90

Confluent 사의 JDBC Sink Connector 통해 구축
Source DB : MySQL
Source Connector: kafka Connect (Source Connector, Debezium)
Target DB : Mysql, Oracle
Sink Connector : kafka Connect (JDBC Sink Connector)

1. Docker Container

주키퍼, 카프카 docker-compose.yml

version: "3"
services:
  zookeeper:
    container_name: zookeeper
    image: wurstmeister/zookeeper
    ports:
      - "2181:2181"

  kafka:
    container_name: kafka
    image: wurstmeister/kafka
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
    environment:
      KAFKA_ADVERTISED_HOST_NAME: 127.0.0.1
      KAFKA_ADVERTISED_PORT: 9092
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock

docker-compose -f docker-compose.yml up -d

mysql source db(3306), target db(3307) 컨테이너 실행

docker pull mysql
docker run -d -p 3306:3306 --name mysql  -e MYSQL_ROOT_PASSWORD=root1111 -d mysql
docker run -d -p 3307:3306 --name targetdb -e MYSQL_ROOT_PASSWORD=root1111 -d mysql

docker exec -it kafka bash
docker exec -it mysql bash     # sorce db
docker exec -it targetdb bash  # target db

2. Connector Install

sorce connector(debezium-connector) kafka 컨테이너 내로 복사

docker cp debezium-connector-mysql-1.5.4.Final-plugin.tar.gz kafka:/opt/kafka_2.13-2.8.1/connectors/debezium-connector-mysql-1.5.4.Final-plugin.tar.gz

docker exec -it kafka bash
cd /opt/kafka_2.13-2.8.1/connectors
tar -zxvf debezium-connector-mysql-1.5.4.Final-plugin.tar.gz

sink connector kafka 컨테이너 내로 복사

docker cp confluentinc-kafka-connect-jdbc-10.6.0 kafka:/opt/kafka_2.13-2.8.1/connectors/

mysql connetor kafka 컨테이너 내 connector의 lib으로 복사

docker cp mysql-connector-j-8.0.31.jar kafka:/opt/kafka_2.13-2.8.1/connectors/confluentinc-kafka-connect-jdbc-10.6.0/lib/

oracle connector kafka 컨테이너 내 connector의 lib으로 복사

docker cp ojdbc10.tar kafka:/opt/kafka_2.13-2.8.1/connectors/confluentinc-kafka-connect-jdbc-10.6.0/lib/

oracle cloud wallet kafka 컨테이너 내로 복사

docker cp Wallet_aging.zip kafka:/oracle_credentials_wallet/Wallet_aging.zip

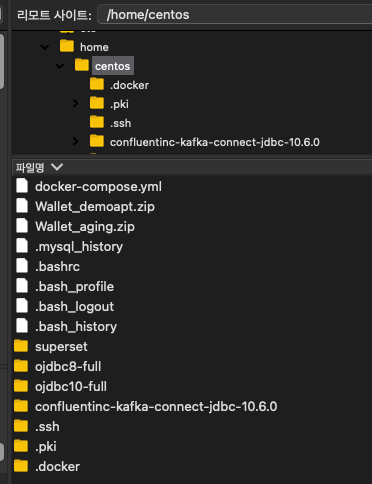

path (filezilla)

3. Connect

카프카 분산모드 실행

connect-distributed.sh /opt/kafka/config/connect-distributed.properties

# connetion check
curl --location --request GET 'http://localhost:8083/connectors'
__consumer_offsets
connect-configs
connect-offsets
connect-status
dbhistory.testdb
dbserver1

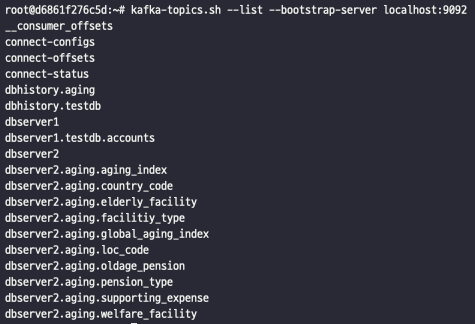

토픽 리스트 조회

# 토픽 리스트 조회, 삭제
kafka-topics.sh --list --bootstrap-server localhost:9092
kafka-topics.sh --delete --zookeeper zookeeper:2181 --topic dbserver2.aging

kafka-console-consumer.sh --topic dbserver2.aging.loc_code. --bootstrap-server localhost:9092 --from-beginning

4. aging-connector : 공공데이터셋 테이블 사용

1) 소스커넥터 : aging-source-connector

curl --location --request POST '<http://localhost:8083/connectors>' \\
--header 'Content-Type: application/json' \\
--data-raw '{
  "name": "aging-source-connector",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "tasks.max": "1",
    "database.hostname": [DB_URL],
    "database.port": "3306",
    "database.user": "root",
    "database.password": "root1111",
    "database.server.id": "184055",
    "database.server.name": "dbserver2",
    "database.allowPublicKeyRetrieval": "true",
    "database.include.list": "aging",
    "database.history.kafka.bootstrap.servers": "kafka:9092",
    "database.history.kafka.topic": "dbhistory.aging",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": "true",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "true",
    "transforms": "unwrap,addTopicPrefix",
    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
    "transforms.addTopicPrefix.type":"org.apache.kafka.connect.transforms.RegexRouter",
    "transforms.addTopicPrefix.regex":"(.*)",
    "transforms.addTopicPrefix.replacement":"$1"
  }
}'

curl --location --request GET '<http://localhost:8083/connectors/project-source-connector/config> ' \\
--header 'Content-Type: application/json'

# 삭제 (필요 시)
curl --location --request DELETE '<http://localhost:8083/connectors/project-source-connector>'

curl -X GET "<http://localhost:8083/connectors/aging-source-connector/topics>"

2) mysql 싱크커넥터 : project-sink-connector

curl --location --request POST '<http://localhost:8083/connectors>' \\
--header 'Content-Type: application/json' \\
--data-raw '{
  "name": "aging-sink-connector",
  "config": {
    "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
    "tasks.max": "1",
    "connection.url": "jdbc:mysql://[DB_URL]:3307/aging?user=root&password=root1111",
    "auto.create": "false",
	   "auto.evolve": "false",
     "insert.mode": "insert",
    "table.name.format":"${topic}",
		"tombstones.on.delete": "true",
    "connection.user": "root",
    "connection.password": "root1111",
    "topics.regex": "dbserver2.aging.(.*)",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": "true",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "true",
    "transforms": "unwrap, route, TimestampConverter",
    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
    "transforms.unwrap.drop.tombstones": "true",
    "transforms.route.type": "org.apache.kafka.connect.transforms.RegexRouter",
    "transforms.route.regex": "([^.]+)\\\\.([^.]+)\\\\.([^.]+)",
    "transforms.route.replacement": "$3",
    "transforms.TimestampConverter.type": "org.apache.kafka.connect.transforms.TimestampConverter$Value",
    "transforms.TimestampConverter.format": "yyyy-MM-dd HH:mm:ss",
    "transforms.TimestampConverter.target.type": "Timestamp",
    "transforms.TimestampConverter.field": "update_date"
  }
}'

curl --location --request GET '<http://localhost:8083/connectors/project-sink-connector/config> ' \\
--header 'Content-Type: application/json'

# 삭제 (필요 시)
curl --location --request DELETE '<http://localhost:8083/connectors/project-sink-connector>'

curl -X GET "<http://localhost:8083/connectors/aging-sink-connector/topics>"

3) 오라클 싱크 커넥터 : oracle-project-sink-connector

curl --location --request POST '<http://localhost:8083/connectors>' \\
--header 'Content-Type: application/json' \\
--data-raw '{
 "name": "oracle-aging-sink-connector",
 "config": {
     "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
     "tasks.max": "1",
     "connection.url": "jdbc:oracle:thin:@aging_low?TNS_ADMIN=/oracle_credentials_wallet",
     "connection.user": "admin",
     "connection.password": "Testtest1212**!**",
	   "table.name.format":"${topic}",
	   "topics.regex": "dbserver2.aging.(.*)",
     "auto.create": "true",
     "auto.evolve": "false",
		 "insert.mode": "insert",
	    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
	    "key.converter.schemas.enable": "true",
	    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
	    "value.converter.schemas.enable": "true",
	    "transforms": "unwrap, route, TimestampConverter",
	    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
	    "transforms.unwrap.drop.tombstones": "false",
			"transforms.unwrap.delete.handling.mode":"rewrite",
	    "transforms.route.type": "org.apache.kafka.connect.transforms.RegexRouter",
	    "transforms.route.regex": "([^.]+)\\\\.([^.]+)\\\\.([^.]+)",
	    "transforms.route.replacement": "$3",
	    "transforms.TimestampConverter.type": "org.apache.kafka.connect.transforms.TimestampConverter$Value",
	    "transforms.TimestampConverter.format": "yyyy-MM-dd HH:mm:ss",
	    "transforms.TimestampConverter.target.type": "Timestamp",
	    "transforms.TimestampConverter.field": "update_date"
     }
 }'

# 삭제 (필요 시)
curl --location --request DELETE '<http://localhost:8083/connectors/oracle-aging-sink-connector>'

curl -X GET "<http://localhost:8083/connectors/oracle-aging-sink-connector/topics>"

4. CDC

실시간 record insert 동영상 첨부

-- source db에 insert
insert into elderly_facility (year, type, cnt, enter_cnt) value (2022, 6, 1000,1000);

Connector Demo

source-test-connector

#생성
curl --location --request POST '<http://localhost:8083/connectors>' \\
--header 'Content-Type: application/json' \\
--data-raw '{
  "name": "source-test-connector",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "tasks.max": "1",
    "database.hostname": [DB_URL],
    "database.port": "3306",
    "database.user": "root",
    "database.password": "root1111",
    "database.server.id": "184054",
    "database.server.name": "dbserver1",
    "database.allowPublicKeyRetrieval": "true",
    "database.include.list": "testdb",
    "database.history.kafka.bootstrap.servers": "kafka:9092",
    "database.history.kafka.topic": "dbhistory.testdb",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": "true",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "true",
    "transforms": "unwrap,addTopicPrefix",
    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
    "transforms.addTopicPrefix.type":"org.apache.kafka.connect.transforms.RegexRouter",
    "transforms.addTopicPrefix.regex":"(.*)",
    "transforms.addTopicPrefix.replacement":"$1"
  }
}'

sink-test-connector

# 생성
curl --location --request POST '<http://localhost:8083/connectors>' \\
--header 'Content-Type: application/json' \\
--data-raw '{
  "name": "sink-test-connector",
  "config": {
    "connector.class": "io.confluent.connect.jdbc.JdbcSinkConnector",
    "tasks.max": "1",
    "connection.url": "jdbc:mysql://[DB_URL]:3307/sinkdb?user=root&password=root1111",
    "auto.create": "false",
    "auto.evolve": "false",
    "delete.enabled": "true",
    "insert.mode": "upsert",
    "pk.mode": "record_key",
    "tombstones.on.delete": "true",
    "table.name.format":"${topic}",
    "connection.user": "root",
    "connection.password": "root1111",
    "topics.regex": "dbserver1.testdb.(.*)",
    "key.converter": "org.apache.kafka.connect.json.JsonConverter",
    "key.converter.schemas.enable": "true",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "true",
    "transforms": "unwrap, route, TimestampConverter",
    "transforms.unwrap.type": "io.debezium.transforms.ExtractNewRecordState",
    "transforms.unwrap.drop.tombstones": "true",
    "transforms.route.type": "org.apache.kafka.connect.transforms.RegexRouter",
    "transforms.route.regex": "([^.]+)\\\\.([^.]+)\\\\.([^.]+)",
    "transforms.route.replacement": "$3",
    "transforms.TimestampConverter.type": "org.apache.kafka.connect.transforms.TimestampConverter$Value",
    "transforms.TimestampConverter.format": "yyyy-MM-dd HH:mm:ss",
    "transforms.TimestampConverter.target.type": "Timestamp",
    "transforms.TimestampConverter.field": "update_date"
  }
}'

# 삭제 (필요 시)
curl --location --request DELETE '<http://localhost:8083/connectors/sink-test-connector>'

레코드 확인 : 테스트 데이터 입력

-- source db에 insert
INSERT INTO accounts VALUES ("123456", "111", "Susan Cooper", "God", "2021-08-16 10:11:12");
INSERT INTO accounts VALUES ("123457", "111", "Rick Ford", "mistakes", "2021-08-16 11:12:13");
INSERT INTO accounts VALUES ("123458", "999", "Bradley Fine", "face", "2021-08-16 12:13:14");
