[RabbitMQ] rabbitmq 설치 및 설정, spring 3.0이상 연동

728x90

1. docker로 Rabbit MQ 설치

컨테이너 이름 : rabbitmq

백그라운드로 실행

docker run -d --name rabbitmq -p 5672:5672 -p 8080:15672 --restart=unless-stopped rabbitmq:management

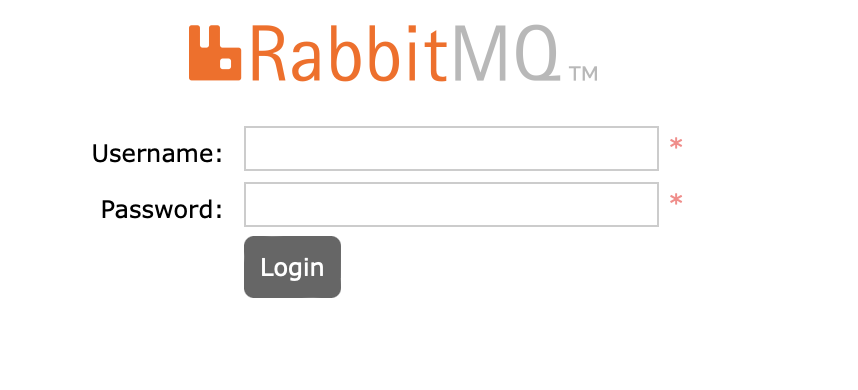

2. management url 접속

# default username, password는 둘다 guest로 입력
http://localhost:15672/

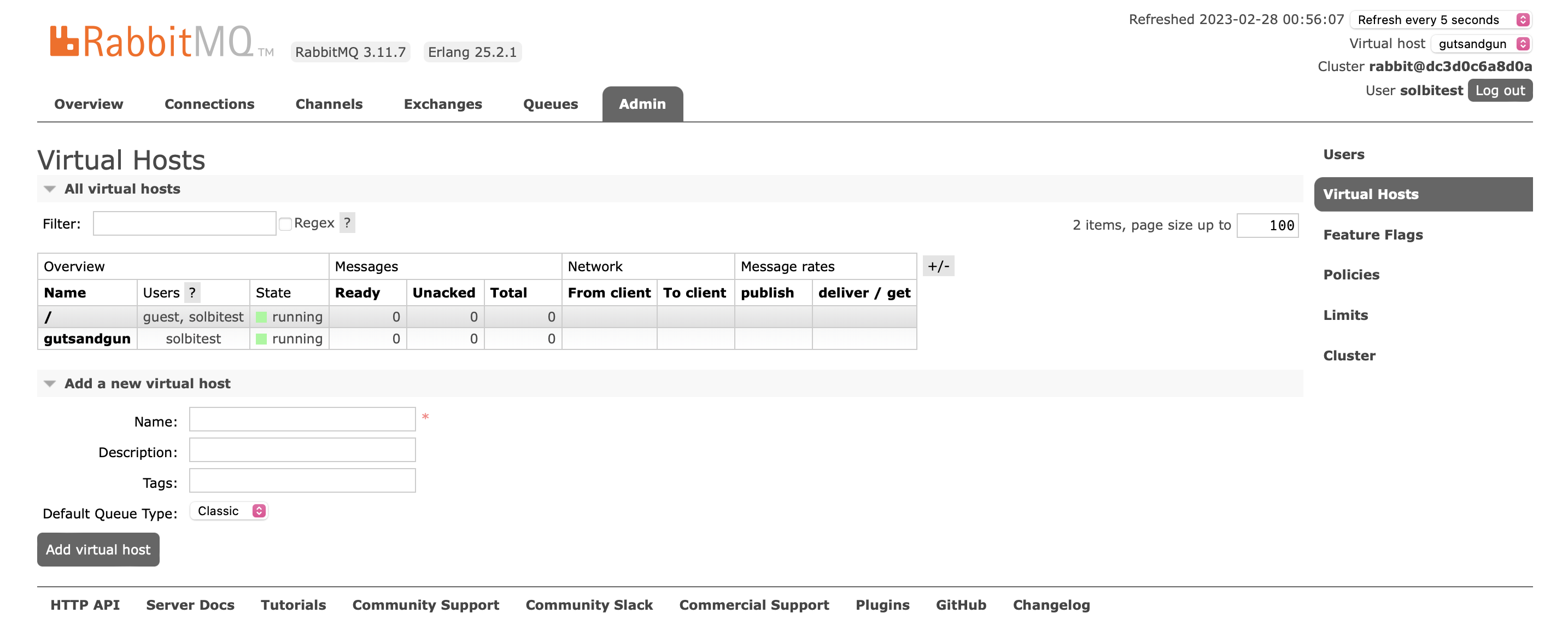

3. admin, vhost 추가 (옵션)

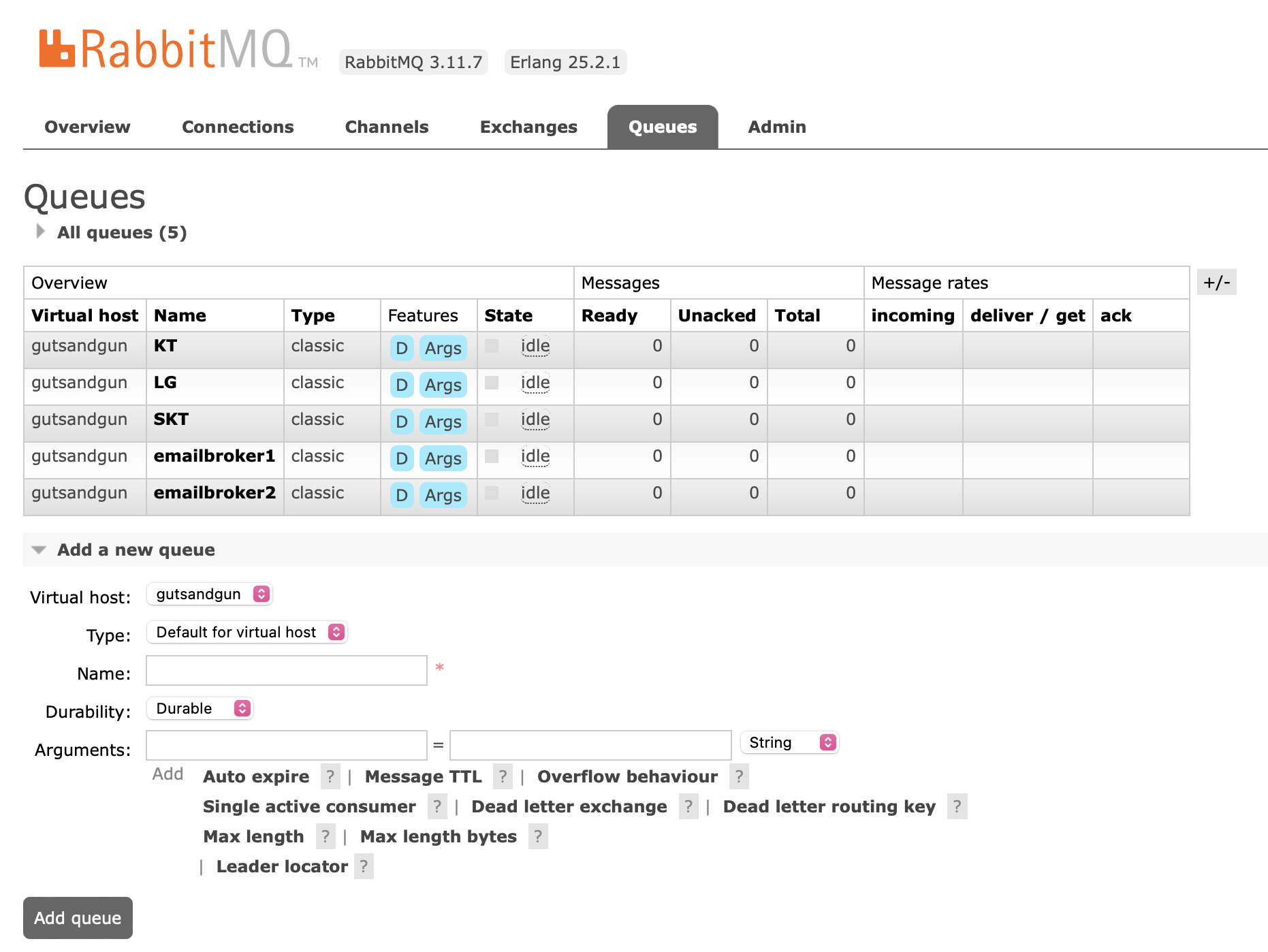

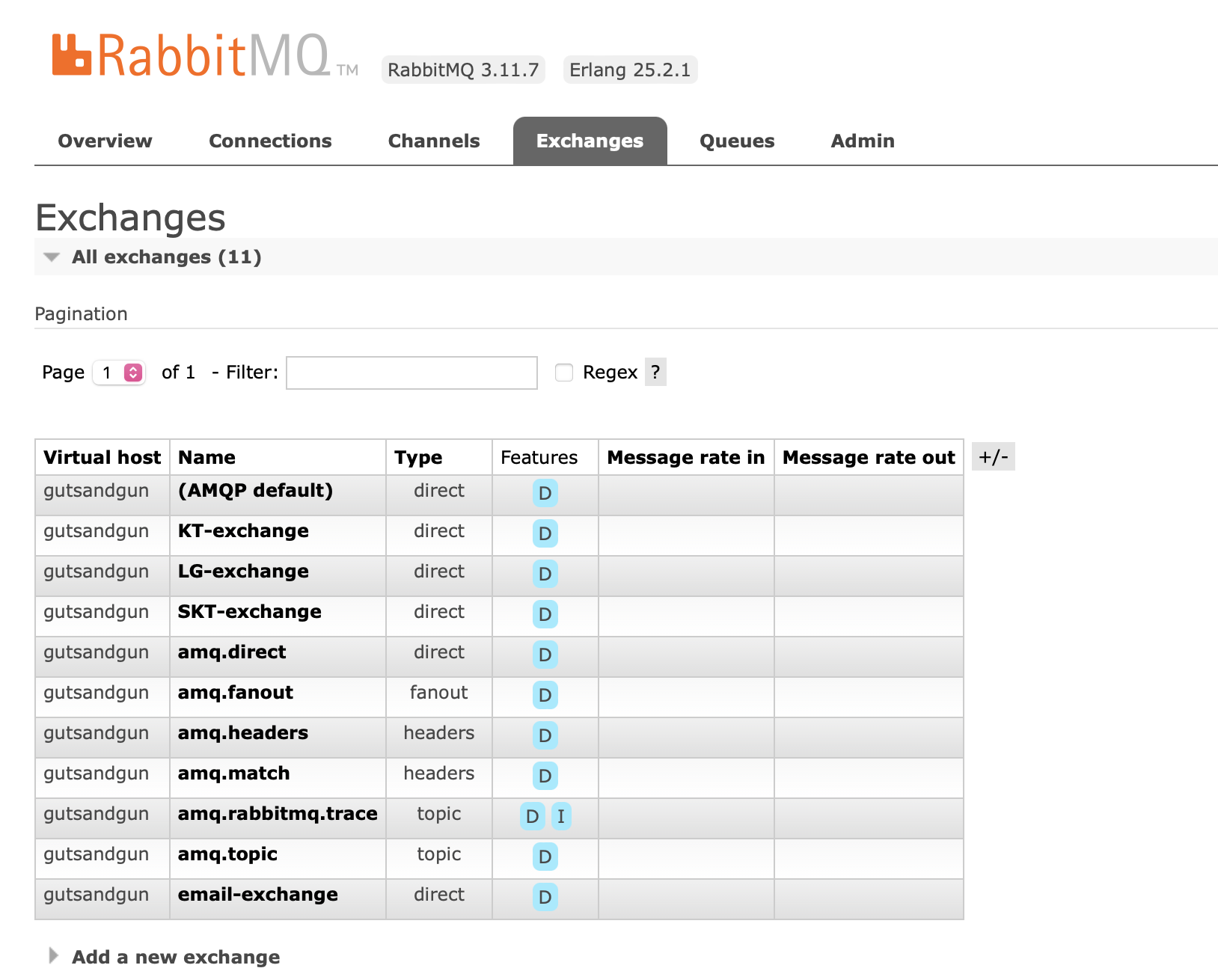

4. Queue, Exchange 생성

queue : SKT, KT, LG,emailbroker1, emailbroker2라는 이름의 총 5개의 큐 생성

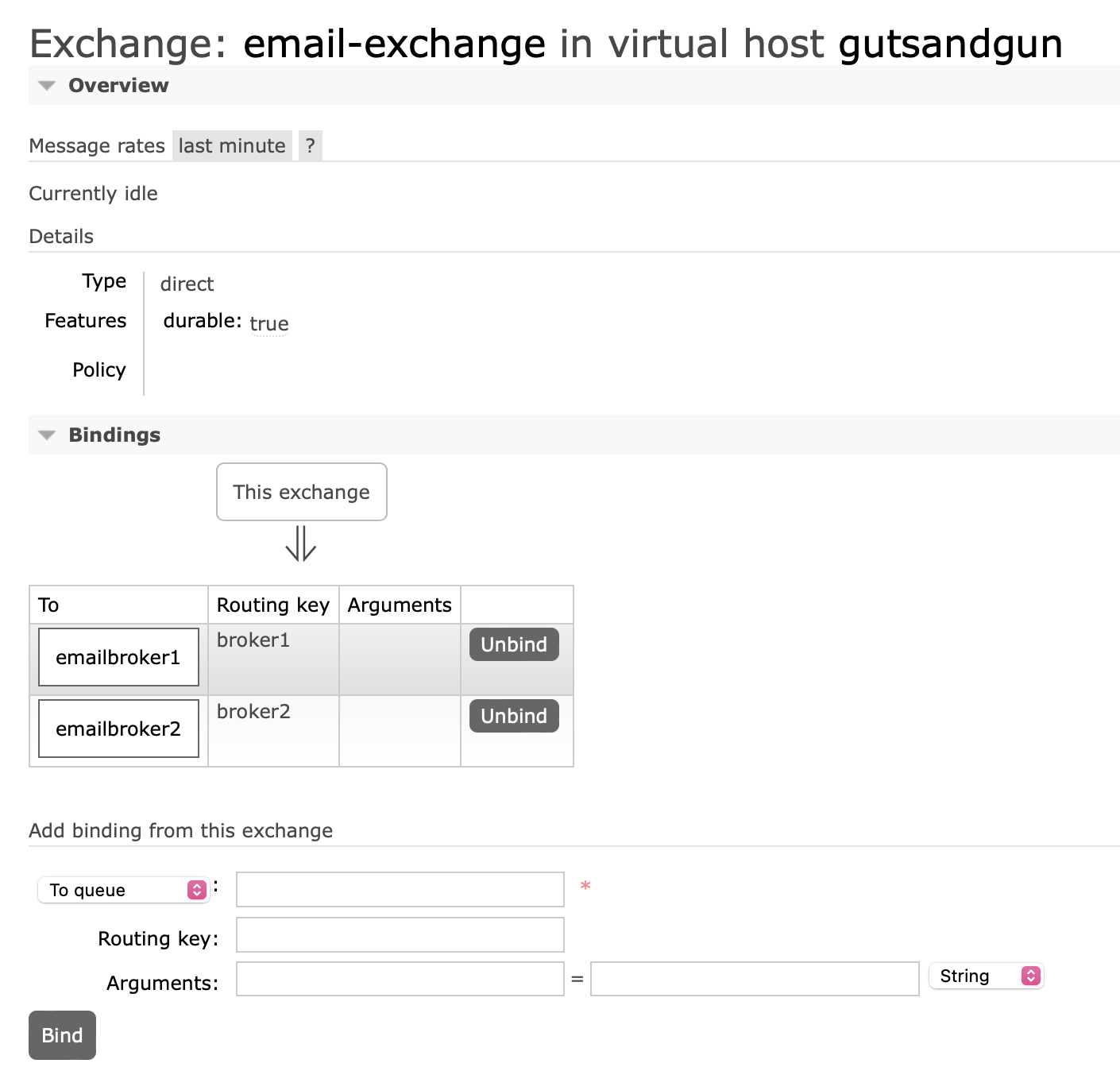

exchange : SKT, KT, LG 3개의 큐는 각자의 exchage 생성 / emailbroker1, emailbroker2는 동일한 1개의 exchange 생성후 바인딩

5. Build.gradle dependency 추가

implementation 'org.springframework.boot:spring-boot-starter-amqp'
testImplementation 'org.springframework.amqp:spring-rabbit-test'

6. application.yml 수정

spring:
  rabbitmq:
    host: localhost
    port: 5672
    # username: guest
    # password: guest
    username: gutsandgun # 3. admin, vhost 추가한 경우
    password: gutsandgun # 3. admin, vhost 추가한 경우
    virtual-host: gutsandgun # 3. admin, vhost 추가한 경우

rabbitmq:
  api:  # rabbit MQ API 호출을 위해 작성
    port: 5672
    queue: /api/queues
    queue-detail: /api/queues/
  queue:  # queue 연동을 위해 작성
    queue1:
      name: SKT
      exchange: SKT-exchange
    queue2:
      name: KT
      exchange: KT-exchange
    queue3:
      name: LG
      exchange: LG-exchange
    queue4:
      name: emailbroker1
      exchange: email-exchange
    queue5:
      name: emailbroker2
      exchange: email-exchange
    routing:
      key:  # exchange
        queue1: SKT
        queue2: KT
        queue3: LG
        queue5: broker1
        queue6: broker2

7. rabbitmqConfing 파일 생성

EnableRabbit 어노테이션 추가
yml에 작성한 값 변수 선언(queue name, exchange, routing key)

@Configuration
@EnableRabbit
public class RabbitmqConfig {

	@Value("${spring.rabbitmq.host}")
    private String host;

    @Value("${spring.rabbitmq.virtual-host}")
    private String vhost;

    @Value("${spring.rabbitmq.port}")
    private int port;

    @Value("${spring.rabbitmq.username}")
    private String username;

    @Value("${spring.rabbitmq.password}")
    private String password;

}

1. 큐 선언

	// queue name
    @Value("${rabbitmq.queue1.name}")
    private String queue1;

    @Value("${rabbitmq.queue2.name}")
    private String queue2;

    @Value("${rabbitmq.queue3.name}")
    private String queue3;

    @Value("${rabbitmq.queue4.name}")
    private String emailQueue1;

    @Value("${rabbitmq.queue5.name}")
    private String emailQueue2;


    @Bean
    Queue queue1() {
        return new Queue(queue1, true);
    }
    @Bean
    Queue queue2() {
        return new Queue(queue2, true);
    }
    @Bean
    Queue queue3() {
        return new Queue(queue3, true);
    }

2. exchange 선언

	// exchange
    @Value("${rabbitmq.queue1.exchange}")
    private String exchange1;

    @Value("${rabbitmq.queue2.exchange}")
    private String exchange2;

    @Value("${rabbitmq.queue3.exchange}")
    private String exchange3;

    @Value("${rabbitmq.queue4.exchange}")
    private String emailExchange;

    @Bean
    DirectExchange directExchange1() {
        return new DirectExchange(exchange1);
    }

    @Bean
    DirectExchange directExchange2() {
        return new DirectExchange(exchange2);
    }

    @Bean
    DirectExchange directExchange3() {
        return new DirectExchange(exchange3);
    }

    @Bean
    DirectExchange emailDirectExchange1() {
        return new DirectExchange(emailExchange);
    }

3. 라우팅 키 선언

    @Value("${rabbitmq.routing.key.queue1}")
    private String routingKey1;

    @Value("${rabbitmq.routing.key.queue2}")
    private String routingKey2;

    @Value("${rabbitmq.routing.key.queue3}")
    private String routingKey3;

    @Value("${rabbitmq.routing.key.queue4}")
    private String emailRoutingKey1;

    @Value("${rabbitmq.routing.key.queue5}")
    private String emailRoutingKey2;

4. 바인딩

	@Bean
    Binding binding1() {
        return BindingBuilder.bind(queue1()).to(directExchange1()).with(routingKey1);
    }

    @Bean
    Binding binding2() {
        return BindingBuilder.bind(queue2()).to(directExchange2()).with(routingKey2);
    }

    @Bean
    Binding binding3() {
        return BindingBuilder.bind(queue3()).to(directExchange3()).with(routingKey3);
    }

    @Bean
    Binding emailBinding1() {
        return BindingBuilder.bind(emailQueue1()).to(emailDirectExchange1()).with(emailRoutingKey1);
    }

    @Bean
    Binding emailBinding2() {
        return BindingBuilder.bind(emailQueue2()).to(emailDirectExchange1()).with(emailRoutingKey2);
    }

5. 컨버터 및 rabbitTemplate 선언

    @Bean
    MessageConverter messageConverter() {
        return new Jackson2JsonMessageConverter();
    }

    @Bean
    RabbitTemplate rabbitTemplate
    		(ConnectionFactory connectionFactory, MessageConverter messageConverter) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(messageConverter);
        return rabbitTemplate;
    }

    @Bean
    ConnectionFactory connectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setHost(host);
        connectionFactory.setPort(port);
        connectionFactory.setVirtualHost(vhost);
        connectionFactory.setUsername(username);
        connectionFactory.setPassword(password);
        return connectionFactory;
    }

	// queue name
@Configuration
@EnableRabbit
public class RabbitmqConfig {


    @Value("${spring.rabbitmq.host}")
    private String host;

    @Value("${spring.rabbitmq.virtual-host}")
    private String vhost;

    @Value("${spring.rabbitmq.port}")
    private int port;

    @Value("${spring.rabbitmq.username}")
    private String username;

    @Value("${spring.rabbitmq.password}")
    private String password;

	// queue name
    @Value("${rabbitmq.queue1.name}")
    private String queue1;

    @Value("${rabbitmq.queue2.name}")
    private String queue2;

    @Value("${rabbitmq.queue3.name}")
    private String queue3;

    @Value("${rabbitmq.queue4.name}")
    private String emailQueue1;

    @Value("${rabbitmq.queue5.name}")
    private String emailQueue2;


	// exchange
    @Value("${rabbitmq.queue1.exchange}")
    private String exchange1;

    @Value("${rabbitmq.queue2.exchange}")
    private String exchange2;

    @Value("${rabbitmq.queue3.exchange}")
    private String exchange3;

    @Value("${rabbitmq.queue4.exchange}")
    private String emailExchange;

    @Value("${rabbitmq.routing.key.queue1}")
    private String routingKey1;

    @Value("${rabbitmq.routing.key.queue2}")
    private String routingKey2;

    @Value("${rabbitmq.routing.key.queue3}")
    private String routingKey3;

    @Value("${rabbitmq.routing.key.queue4}")
    private String emailRoutingKey1;

    @Value("${rabbitmq.routing.key.queue5}")
    private String emailRoutingKey2;


    @Bean
    Queue queue1() {
        return new Queue(queue1, true);
    }
    @Bean
    Queue queue2() {
        return new Queue(queue2, true);
    }
    @Bean
    Queue queue3() {
        return new Queue(queue3, true);
    }

    @Bean
    Queue emailQueue1() {
        return new Queue(emailQueue1, true);
    }

    @Bean
    Queue emailQueue2() {
        return new Queue(emailQueue2, true);
    }


    @Bean
    DirectExchange directExchange1() {
        return new DirectExchange(exchange1);
    }

    @Bean
    DirectExchange directExchange2() {
        return new DirectExchange(exchange2);
    }

    @Bean
    DirectExchange directExchange3() {
        return new DirectExchange(exchange3);
    }

    @Bean
    DirectExchange emailDirectExchange1() {
        return new DirectExchange(emailExchange);
    }


    @Bean
    Binding binding1() {
        return BindingBuilder.bind(queue1()).to(directExchange1()).with(routingKey1);
    }

    @Bean
    Binding binding2() {
        return BindingBuilder.bind(queue2()).to(directExchange2()).with(routingKey2);
    }

    @Bean
    Binding binding3() {
        return BindingBuilder.bind(queue3()).to(directExchange3()).with(routingKey3);
    }

    @Bean
    Binding emailBinding1() {
        return BindingBuilder.bind(emailQueue1()).to(emailDirectExchange1()).with(emailRoutingKey1);
    }

    @Bean
    Binding emailBinding2() {
        return BindingBuilder.bind(emailQueue2()).to(emailDirectExchange1()).with(emailRoutingKey2);
    }


    @Bean
    MessageConverter messageConverter() {
        return new Jackson2JsonMessageConverter();
    }

    @Bean
    RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory, MessageConverter messageConverter) {
        RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(messageConverter);
        return rabbitTemplate;
    }

    @Bean
    ConnectionFactory connectionFactory() {
        CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
        connectionFactory.setHost(host);
        connectionFactory.setPort(port);
        connectionFactory.setVirtualHost(vhost);
        connectionFactory.setUsername(username);
        connectionFactory.setPassword(password);
        return connectionFactory;
    }
}
